    UMX EFI

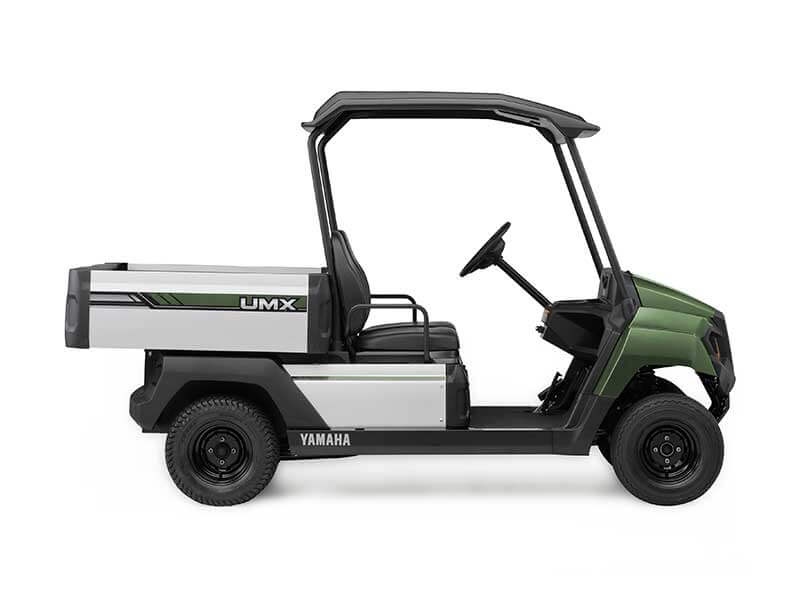

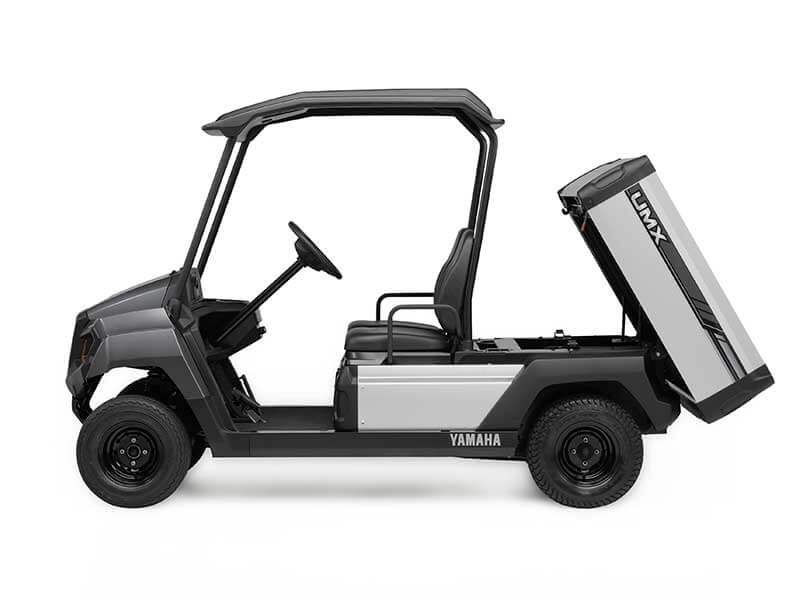

    The all-new UMX takes utility golf car strength, resourcefullness, dependability and reliability to new hieghts. With space and comfort for up to two adults, the UMX is equipped with a substantial cargo bed measuring in at 104.6 cm long x 116.6 cm wide x 30.2 cm deep. Not only will your maintenance team have more volume to work with, they'll confidence in loading it too with a max cargo capacity of 360kg.

    Features

    Technical Specification

    • Engine Type Low Emission Single Cylinder, 60 Incline OHV
    • Displacement (cc) 402.0
    • Bore x Stroke (mm) 85 x 63
    • Compression Ratio
    • Output Rating (kW) 14.25
    • Lubrication System Splash-style positive oil lubrication
    • Ignition Transistor
    • Engine Management Electronic Fuel Injection
    • Starter System Starter / Generator
    • Oil Capacity (L) 1
    • Fuel Tank Capacity (L) 20.0
    • Max Speed (KPH) 31.40
    • Seating Capacity 2
    • Frame Type HybriCore™ Chassis
    • Steering Self-compensating double reduction helical rack-and-pinion
    • Suspension Front Tru-Trak II™ fully independent automotive-style strut suspension
    • Suspension Rear Unit swing arm with DUAL RATE coil springs over hydraulic shock absorbers
    • Brakes Self-adjusting mechanical drum brakes
    • Tyres Front 20x10-10 4ply Monitor K389
    • Tyres Rear 20x10-10 4ply Monitor K500
    • Length (mm) 3032
    • Width (mm) 1253
    • Height (mm) 1824 (with suntop)
    • Wheelbase (mm) 1961
    • Ground Clearance (mm) 115
    • Dry Weight (kg) 455.4
    • Minimum Turning Radius (mm) 3980
    • Colours
