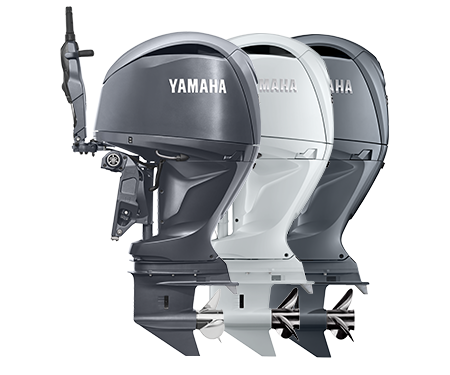

    Yamaha’s popular and proven range of F200 Digital and Mechanical Control outboards now feature a newly designed look and integrated steering, taking these engines to the next level when it comes to power, reliability and control.


    Boat owners can now choose from Integrated Hydraulic Steering or Integrated Electro-Hydraulic Steering, with both systems housed in a neat, sealed cylinder unit, which is built into the transom bracket of the engine, rather than being a third-party bolt-on component. This results in a simple and clean rigging set-up, and an uncluttered bilge and transom area, while exposing less components to the elements for improved long-term durability and reliability.


    The Integrated Electro-Hydraulic Steering models are fully compatible with Yamaha’s exclusive Helm Master EX Autopilot and Joystick system, a must have system for serious fishermen and skippers who demand ultimate boat control.

    This new range of four-cylinder integrated steering models are ideal for all applications, including new boat packages, existing boat repowers and multi engine set-ups.

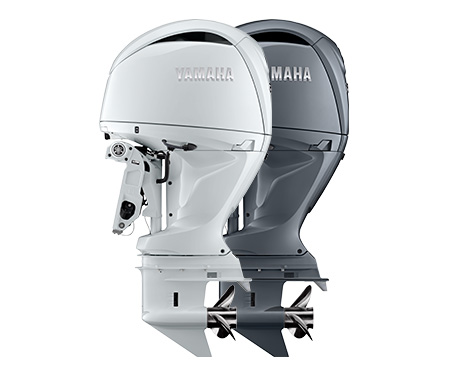

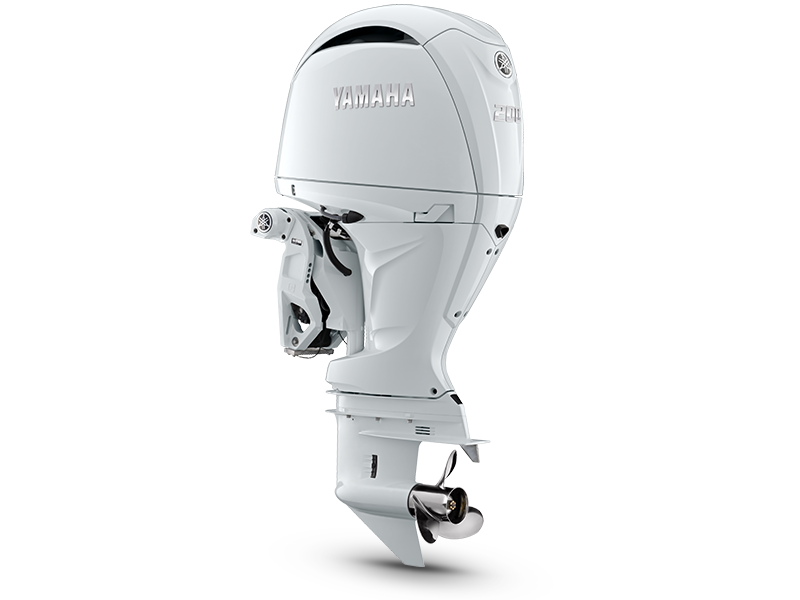

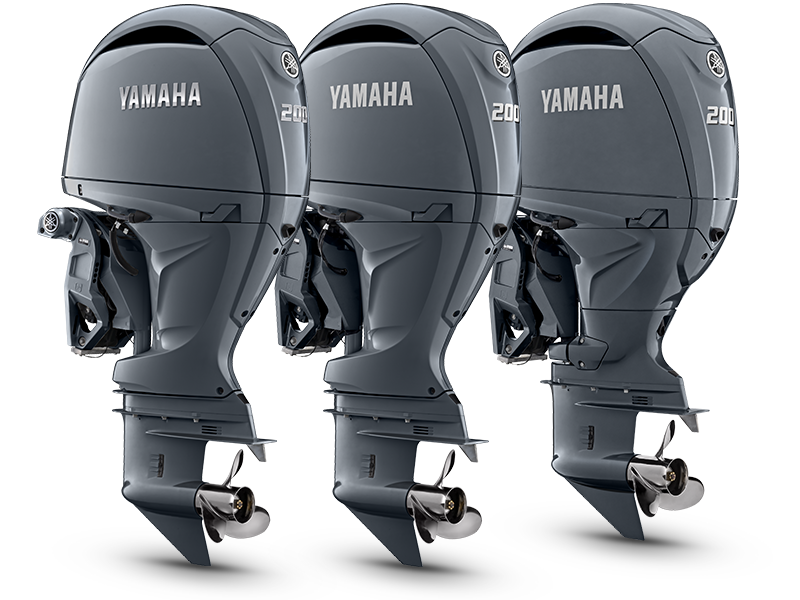

    Available in signature Yamaha grey and pearlescent white, the modernised F200 outboards bring a new level of delight to boating.


    MODELS F200SA F200CB F200C
    Control System Digital Electronic Control (DEC) Digital Electronic Control (DEC) Mechanical Control (MEC)
    Steering System Integrated Electro-Hydraulic Steering (IEHS) Integrated Hydraulic Steering (IHS) Integrated Hydraulic Steering (IHS)
    Colour Yamaha Grey or Pearl White  Yamaha Grey Yamaha Grey
    Helm Master EX Autopilot/Joystick Compatible Yes - -
    Counter Rotating Yes - Yes
    Transom Height (Shaft Length) mm [inch] X: 642 [25.3] L: 516 [20.4] | X: 642 [25.3] L: 516 [20.4] | X: 642 [25.3]

    Features & Rigging Componentry

    Technical Specification

    • Engine Type 4-Stroke, 16 Valve DOHC VCT Direct Action In-Line 4
    • Bore x Stroke (mm) 96 x 96.2
    • Fuel Tank Capacity (l)
    • Displacement (cc) 2785.0
    • Recommended Maximum RPM 5000-6000
    • Fuel Management EFI
    • Ignition TCI
    • Lubrication System Wet-sump
    • Alternator Output 12V - 50A with Rectifier Regulator
    • Gear Ratio 1.86 : 1 (Counter Rotating models: LF200XSA & LF200XC)
    • Starter System Electric
    • Operation Method F200SA: DEC/IEHS | F200CB: DEC/IHS | F200C: MEC/IHS
    • Trim and Tilt Method F200SA & F200CB: TotalTilt™ with Limiter | F200C: Tilt Limiter
    • Digital Gauges Standard
    • Command Link Gauges Standard
    • Transom Height (mm [inch]) (L): 516 [20.4] (X): 642 [25.3]
    • Dry Weight (kg) F200XSA: 238 | F200LCB: 235 | F200XCB: 236 | F200LC: 234 | F200XC: 235
    • Colours
