    F30

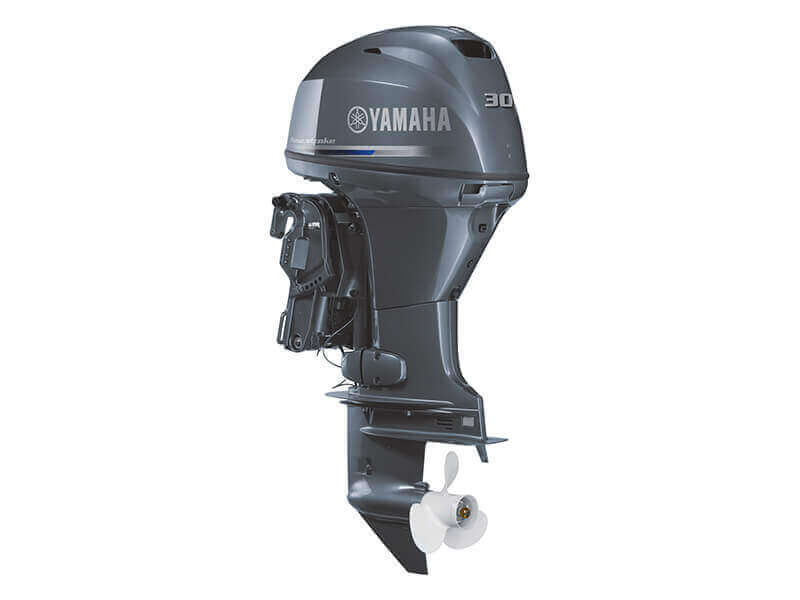

    If you’re into fishing on your weekends, then you can’t go past the exceptionally fuel-efficient and strong-performing Yamaha F30 Four-Stroke.

    Efficient and reliable, the F30 features Yamaha’s Multi-Point Electronic Fuel Injection (EFI) system, matched with a micro-processor controlled system to deliver reliable turnkey hot and cold starting, improved fuel economy, increased power-delivery, lower emissions, and an overall smoother and quieter operation.

    Delivering plenty of performance from the compact 747cc 3-cylinder, marine engine, the F30 offers exceptional versatility with both forward or tiller handle control options. The forward control option can be matched with digital gauges, including Yamaha's feature packed Command-Link system.  While the optional Multi-Function Tiller Handle comes with trim, shift, and throttle controls, as well as ‘start-in-gear’ protection and warning horn alerts, all integrated into the ergonomic handle.

    Features & Rigging Componentry

    Technical Specification

    • Engine Type 4-Stroke, SOHC In-line 3
    • Bore x Stroke (mm) 65 x 75
    • Fuel Tank Capacity (l)
    • Displacement (cc) 747.0
    • Recommended Maximum RPM 5000-6000
    • Fuel Management EFI
    • Ignition DC-CDI
    • Lubrication System Wet-sump
    • Alternator Output 12V - 17A with Rectifier Regulator
    • Gear Ratio 2.00 : 1
    • Starter System Electric
    • Operation Method Mechanical Control (Optional Tiller Handle Available)
    • Trim and Tilt Method Power Trim & Tilt
    • Digital Gauges Optional
    • Command Link Gauges Optional
    • Transom Height (mm [inch]) L: 536 [21.1]
    • Dry Weight (kg) L: 98
    • Colours
