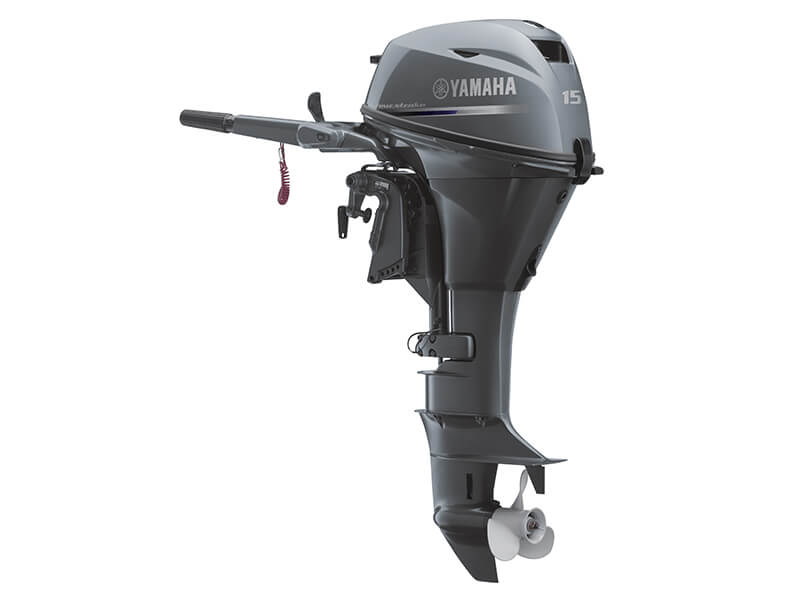

    F15

    For big engine performance, delivered in a small engine package, you can’t go past Yamaha’s F15 outboard. This two-cylinder, 362cc, four-stroke outboard is extremely fuel efficient, while producing a powerful and smooth-riding all-round performance. This engine includes Yamaha’s PrimeStartTM, which delivers quick and efficient starting in all climatic conditions. While the manual start models include an Auto Decompression feature which makes pull starting easier. Other features include a Shallow Water Drive System which allows safe operation in shallow waters and a high out-put alternator to ensure adequate power supply to run all your electronics.





    Features & Rigging Componentry

    Technical Specification

    • Engine Type 4-Stroke, SOHC In-line 2
    • Bore x Stroke (mm) 63 x 58.1
    • Fuel Tank Capacity (l)
    • Displacement (cc) 362.0
    • Recommended Maximum RPM 5000-6000
    • Fuel Management Carb
    • Ignition CDI
    • Lubrication System Wet-sump
    • Alternator Output 12V - 10A with Rectifier Regulator (EH)
    • Gear Ratio 2.08 : 1
    • Starter System Manual (MH), Electric (EH)
    • Operation Method Tiller handle
    • Trim and Tilt Method Manual tilt (MH)
    • Digital Gauges N/A
    • Command Link Gauges N/A
    • Transom Height (mm [inch]) S: 438 [17.2] | L: 565 [22.2]
    • Dry Weight (kg) S(MH): 51 | L(MH): 53 | S(EH): 54 | L(EH): 56
    • Colours
