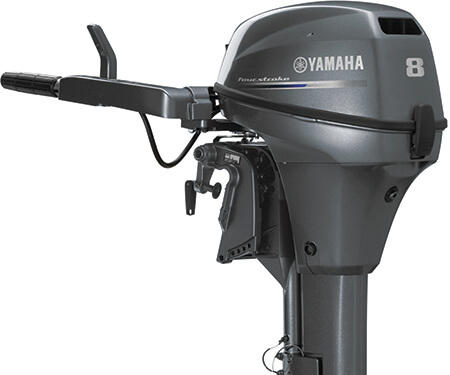

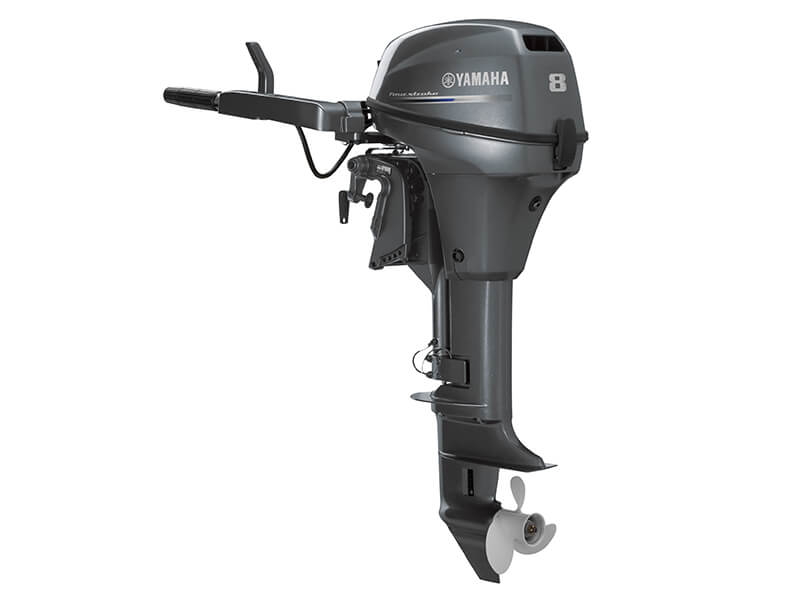

For all-round portability, power and performance, the F8 delivers well above its class. The 212cc, inline two-cylinder, four-stroke compact engine provides exceptional speed and acceleration for its size - delivering an ideal engine platform for small tinnies and inflatables. With a fold-in tiller handle, comfortable carry handles and resting pads, these outboards are easy to mount, remove and store. Like all Yamaha engines, the F8 is extremely quiet, has excellent fuel economy, produces low emissions and delivers an exceptional smooth and reliable performance.
The four-valve, two-cylinder, single overhead camshaft delivers sufficient torque in the low to mid speed ranges, delivering a highly responsive and smooth running performance.
Easy Start Decompression Device
For easy pull starting, this engine features an auto decompression device fitted to the camshaft. This system releases pressure in the cylinder when the manual pull start is engaged, allowing for light and convenient pull starting.
Ergonomic Carry and Control Handles
Large comfortable grips located on the front and back of the engine make carrying, mounting and removing the engine easier. The tiller handle folds neatly back to make the engine even more compact for carrying and storage.
Ergonomic Shift lever and Tiller Handle
The new, large and comfortable twist-grip throttle allows easy control of the engine, while the side-mounted shift selector provides added user convenience. Combined with the integrated kill switch and throttle cable, the tiller delivers superb handling and manoeuvrability.
Fresh Water Flushing System
Simply connect a hose to the easy access, front-mounted connector (optional) - to flush salt and dirt from the outboard without having to run the engine. Flushing the engine after each usage reduces corrosion and extends the engines life.
Labyrinth Exhaust System
Yamaha’s proven labyrinth exhaust system reduces engine noise at low RPM and idle. A water sealed outer wall around the exhaust muffler effectively reduces exhaust tone for whisper quiet operation and enhances cooling which protects the exhaust system against corrosion.
Manual Tilt Shallow Water Drive
This engine features a three-step shallow water drive system, which is extremely useful for tackling Australia’s shallow rivers, estuaries, creeks and when coming to shore.
Exclusive to Yamaha, PrimeStartTM makes starting a Yamaha outboard as easy as starting a car. It allows the engine to be started cold by automatically controlling the engine ‘warming up’ process - eliminating the need for a conventional choke or the need to ‘warm up’ your engine by revving it in neutral.
Rest Pad for Vertical Storage
The special rest-pads allow the engine to be laid down on its back vertically. Alternatively, you can lay the engine on its side.
- Engine Type 4-Stroke, SOHC In-line 2
- Bore x Stroke (mm) 56 x 43
- Fuel Tank Capacity (l) 12.0
- Displacement (cc) 212.0
- Recommended Maximum RPM 5000-6000
- Fuel Management Carb
- Ignition CDI
- OEDA Emission Rating 3
- Lubrication System Wet-sump
- Alternator Output 12V - 6A with Rectifier Regulator (Optional)
- Gear Ratio 2.08 : 1
- Starter System Manual
- Operation Method Tiller handle
- Trim and Tilt Method Manual Tilt
- Digital Gauges N/A
- Command Link Gauges N/A
- Transom Height (mm [inch]) S: 431 [17.0] | L: 562 [22.0]
- Dry Weight (kg) S: 40 | L: 41
