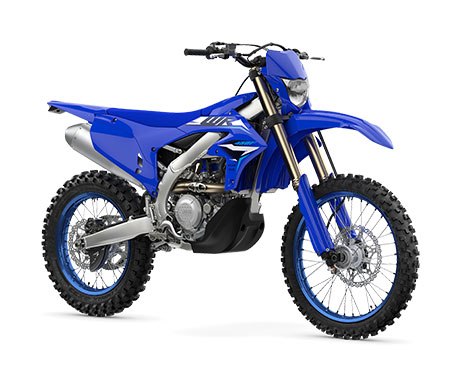

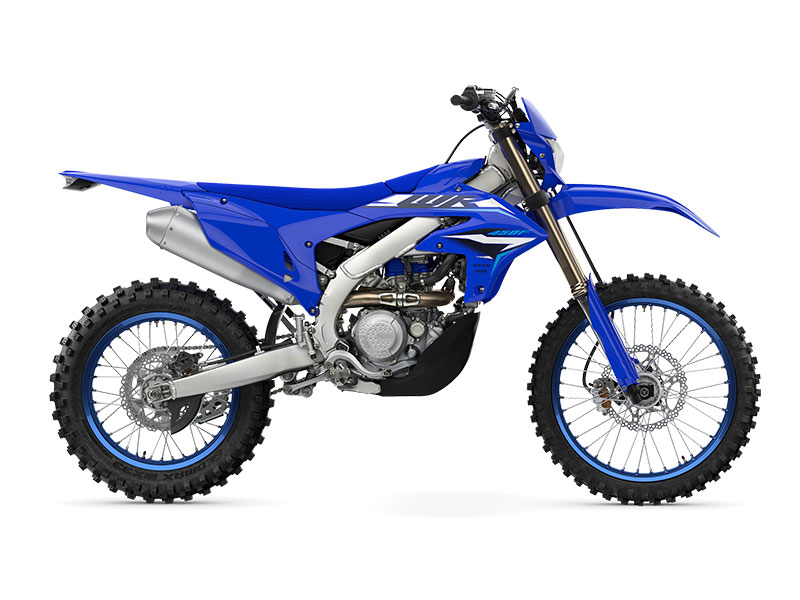

    WR450F

    Based on the MXGP World Championship winning YZ450F, the WR450F employs Yamaha’s innovative reverse cylinder head and rearwards slanting cylinder. Having convincingly demonstrated its winning performance at the highest level, this industry-leading engine design offers high levels of controllable and linear torque, while this design’s greater mass centralisation contributes towards the bike’s agile handling character.

    Together with the compact and light-handling YZ-F based chassis, the WR450F delivers major improvements in terms of weight, power characteristic, agility and rideability.

    Features

    Technical Specification

    • Engine Type Liquid-cooled, 4-stroke, DOHC, 4-valve
    • Displacement (cc) 449.0
    • Bore x Stroke (mm) 97.0 x 60.8
    • Compression Ratio 12.5 : 1
    • Lubrication System Wet sump
    • Fuel Management Fuel Injection
    • Ignition TCI
    • Starter System Electric
    • Fuel Tank Capacity (L) 7.5
    • Final Transmission Chain
    • Transmission Constant mesh 5-speed
    • Frame Type Bilateral beam
    • Suspension Front Telescopic forks, 310mm travel
    • Suspension Rear Swingarm (link suspension), 318mm travel
    • Brakes Front Hydraulic single disc, 270mm
    • Brakes Rear Hydraulic single disc, 245mm
    • Tyres Front 90/90/21 54M M+S Tube type
    • Tyres Rear 130/90-18 69M+S Tube type
    • Length (mm) 2165
    • Width (mm) 825
    • Height (mm) 1280
    • Seat Height (mm) 965
    • Wheelbase (mm) 1465
    • Ground Clearance (mm) 325
    • Wet Weight (kg) 123
    • Colours

    Gallery & Videos
