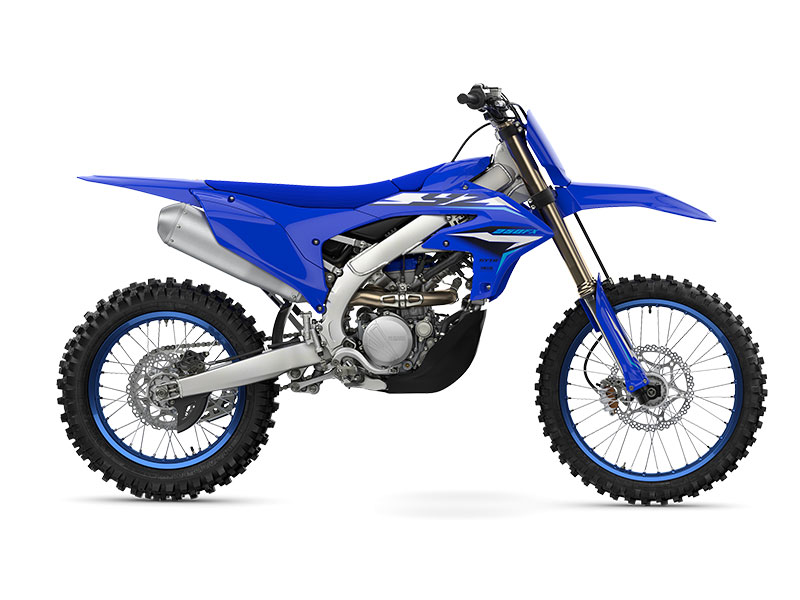

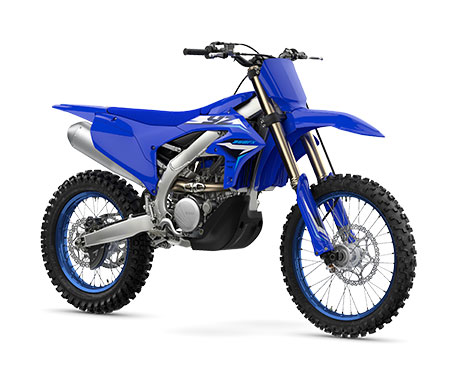

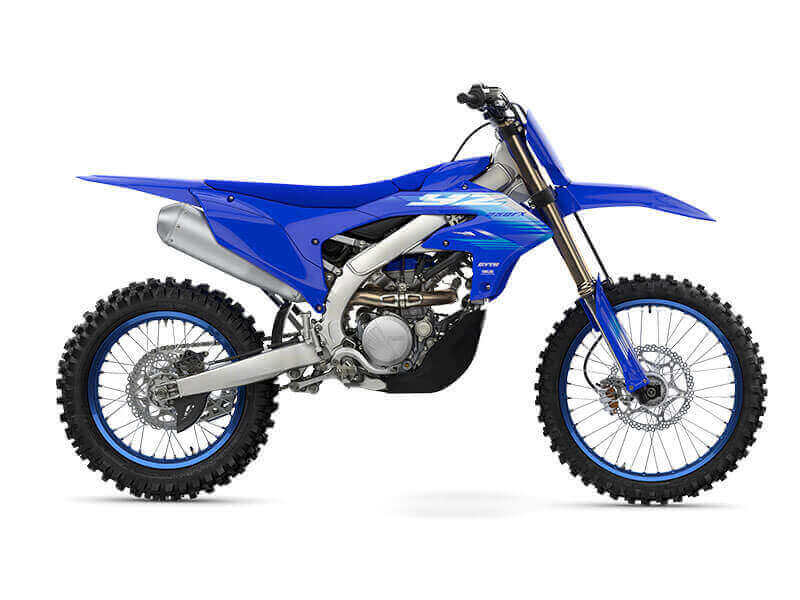

    YZ250FX

    This purpose built enduro racer is built for riding in the bush – fast.

    Developed as a sister machine to the YZ250X two-stroke, this cross country racer is equipped with a shorty muffler and slightly firmer suspension settings than WR250F. And with no lights, speedo, bashplate or a radiator fan, the FX tips the scales at 4kg lighter than the road registrable WR250F.

    Like YZ250X, the YZ250FX is available in two versions – standard and with a recreational registration lighting kit (R model) that includes an aluminium bashplate, handguards, rearview mirror, lights and a horn. This allows the model to qualify for recreational registration in applicable states.

    Features

    Technical Specification

    • Engine Type Liquid-cooled, 4-stroke, DOHC, 4-valve
    • Displacement (cc) 250.0
    • Bore x Stroke (mm) 77.0 x 53.6
    • Compression Ratio 13.5 : 1
    • Lubrication System Wet sump
    • Fuel Management Fuel Injection
    • Ignition TCI
    • Starter System Electric and Kick
    • Fuel Tank Capacity (L) 7.5
    • Final Transmission Chain
    • Transmission Constant mesh 6-speed
    • Frame Type Bilateral beam
    • Suspension Front Telescopic forks, 310mm travel
    • Suspension Rear Swingarm (link suspension), 318mm travel
    • Brakes Front Hydraulic single disc, 250mm
    • Brakes Rear Hydraulic single disc, 245mm
    • Tyres Front 90/90-21 54M Tube type
    • Tyres Rear 110/100-18 64M Tube type
    • Length (mm) 2165
    • Width (mm) 825
    • Height (mm) 1280
    • Seat Height (mm) 965
    • Wheelbase (mm) 1465
    • Ground Clearance (mm) 325
    • Wet Weight (kg) 113
    • Colours
