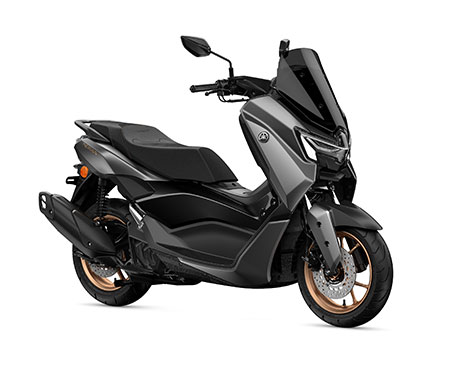

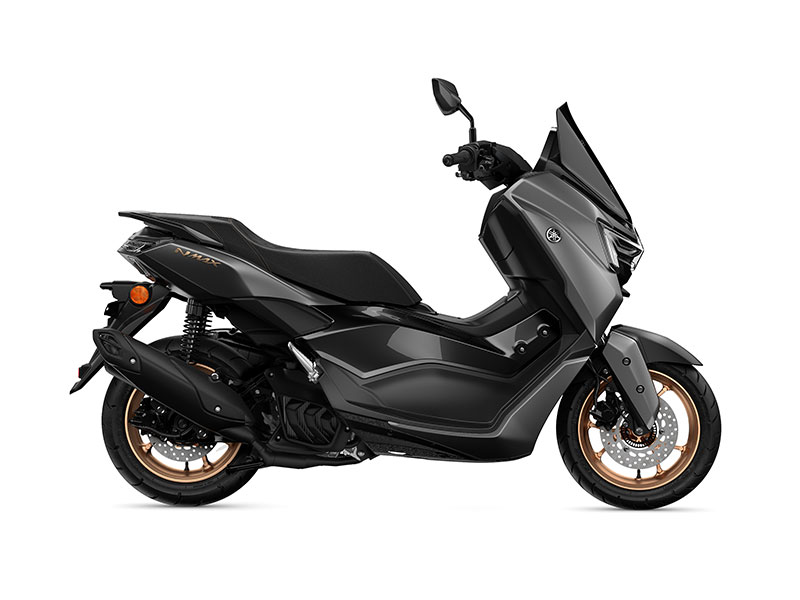

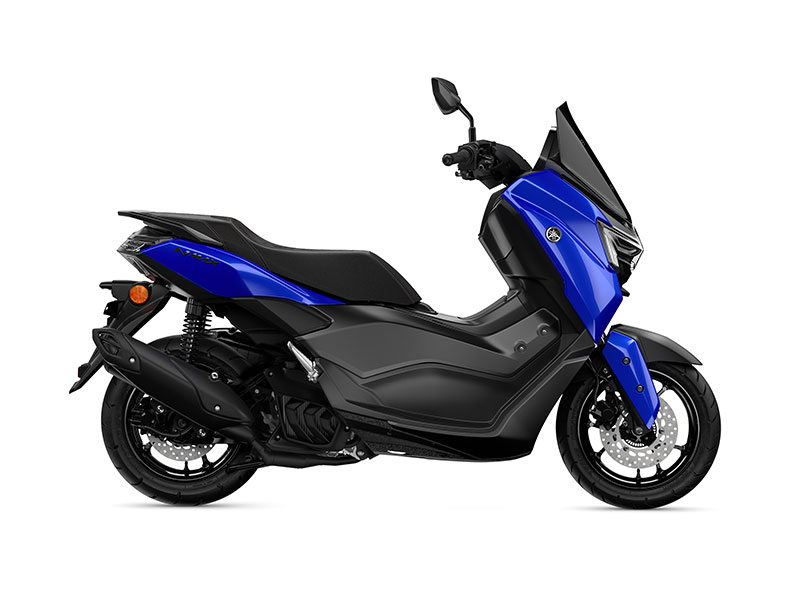

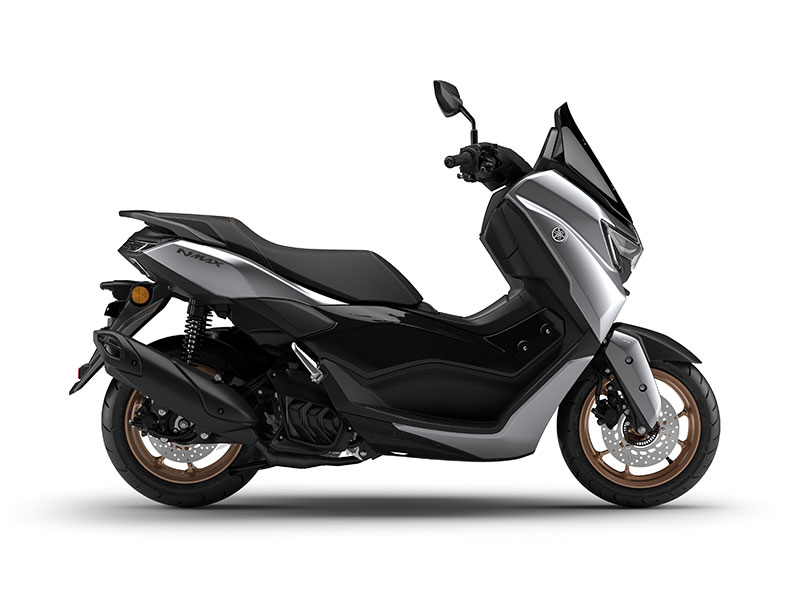

    NMAX 155

    The NMAX 155 gives you all the fun and agility you expect from a lightweight scooter – with the added bonus of quicker acceleration and a higher top speed that comes with its new and more powerful 155cc engine.

    The spacious riding position and long dual seat give you a relaxing and comfortable journey – and with its powerful LED triple headlights and sleek tail, you know you’ve joined the stylish MAX family.

    Powerful front and rear disc brakes feature ABS as standard – and with 23.5 litres of underseat storage as well as a handy front pocket, the NMAX 155 is the sporty and practical way to get around.

    Features

    Technical Specification

    • Engine Type Liquid-cooled, 4-stroke, SOHC, 4-valve
    • Displacement (cc) 155.0
    • Bore x Stroke (mm) 58.0 x 58.7
    • Compression Ratio 10.5 : 1
    • Lubrication System Wet sump
    • Fuel Management Fuel Injection
    • Ignition TCI
    • Starter System Electric
    • Fuel Tank Capacity (L) 6.6
    • Final Transmission Gear
    • Transmission V-Belt Automatic
    • Frame Type Underbone
    • Suspension Front Telescopic forks, 100mm travel
    • Suspension Rear Unit swing, 90mm travel
    • Brakes Front Hydraulic single disc, 230mm
    • Brakes Rear Hydraulic single disc, 230mm
    • Tyres Front 110/70-13M/C 48P Tubeless
    • Tyres Rear 130/70-13M/C 63P Tubeless
    • Length (mm) 1955
    • Width (mm) 740
    • Height (mm) 1115
    • Seat Height (mm) 765
    • Wheelbase (mm) 1350
    • Ground Clearance (mm) 135
    • Wet Weight (kg) 127
    • Colours
