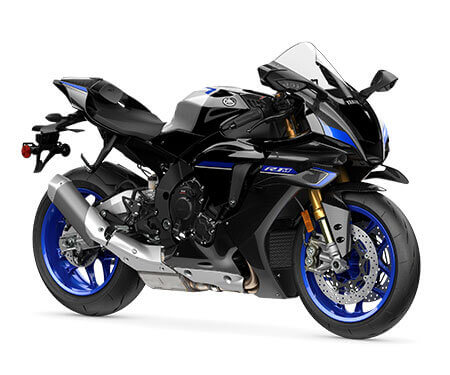

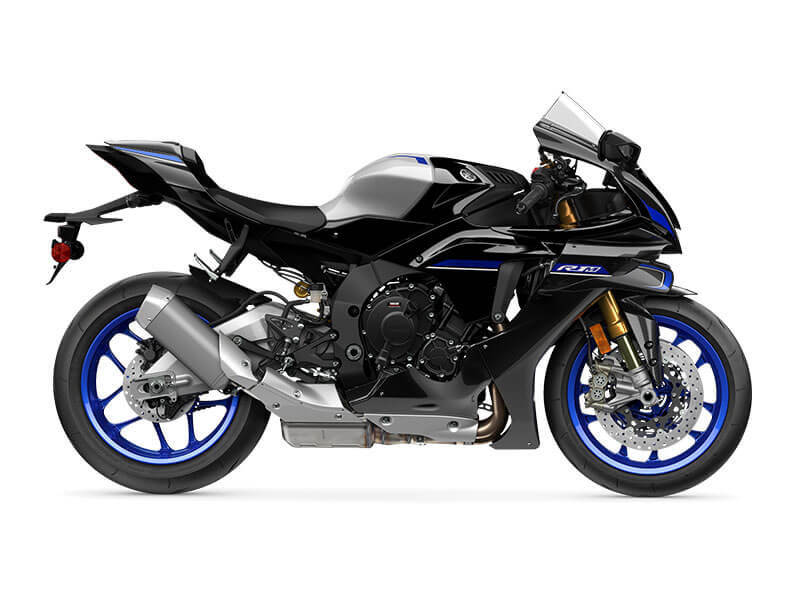

    YZF-R1M

    Yamaha's highest specification and most exclusive supersport model, the YZF-R1M immediately sets itself apart with a distinctive colour scheme, polished aluminium swingarm and striking full carbon fibre bodywork, which seamlessly integrates with the new carbon fibre winglets for an aggressive, track-focused look. An engraved, serial numbered badge further highlights its exclusivity.

    Along with the same advanced performance provided by the powerful 998cc CP4 crossplane engine, comprehensive electronics suite and lightweight aluminium Deltabox frame found on the standard R1, capability is pushed to an even higher level on the R1M with the addition of its sophisticated Öhlins Electronic Racing Suspension. The ERS simplifies suspension tuning by providing streamlined dynamic tuning modes for both street and track, as well as manual modes for more conventional suspension tuning.


    MY25 Ride Away Price

    $ 41,749.00
    INC GST
    Ride away price is based on the manufacturer’s recommended retail price (MRRP) for a private buyer, 12 months registration, 12 months CTP, stamp duty and recommended dealer delivery fee. For non-road registerable models, ready to ride price includes the MRRP and dealer delivery fee. Actual ride away / ready to ride price may differ depending on choice of dealer and individual circumstances. Contact your local Yamaha dealer to confirm pricing. Yamaha reserves the right to vary the ride away / ready to ride price at any time.
    ENQUIRE NOW

    Features

    998cc CP4 Engine

    Developed using M1 MotoGP technology, the 998cc engine features Bosch injectors that deliver a wide spray angle for increased efficiency. Specially designed finger-follower rocker arms and cam lobes give outstanding high rpm performance – and this EU5 crossplane engine also features a high efficiency lubrication system for optimum performance.

    MotoGP Inspired Winglets

    Developed through extensive simulator and on-track testing, new MotoGP-inspired carbon fibre winglets create additional downforce for exceptional chassis stability and added front-end feel when braking or cornering.

    Advanced Bodywork

    The YZF-R1M comes with a radical factory-bike look inspired by the race-winning Yamaha M1 MotoGP bike. The aggressive front cowl and screen give a low frontal area for minimal drag, and the integrated fairing flows seamlessly into the fuel tank sides to give a tight tuck-in position for the most efficient aerodynamics.

    Brake Control System

    Technology is transforming the way we ride, and the YZF-R1M features no fewer than seven electronic control systems. Featuring two modes, the Brake Control (BC) system analyses data such as lean angle and slipping acceleration and modulates hydraulic brake pressure to prevent wheel lock ups.

    Engine Brake Management

    Control is everything when you're on the track, and the Engine Brake Management (EBM) system allows you to adjust engine braking force. Using data from various sensors, the EBM adjusts throttle opening, ignition timing and fuel injection volume to give you a choice of three engine braking modes to suit different riding situations.

    Öhlins Electronic Racing Suspension

    The Öhlins Electronic Racing Suspension (ERS), featuring NPX pressurised fork legs, along with a revised rear shock, is the most sophisticated suspension system available on a production Yamaha. Its advanced software enables you to corner, brake and accelerate more efficiently, and its user-friendly interface allows you to make rapid suspension setting changes to suit different tracks and surface conditions.

    Communication Control Unit

    A Communication Control Unit (CCU) enables checks of the various forms of machine information and simplifies the setting process in order to heighten the instrument panel’s function as a rider-machine interface. Comprised of the CCU and a GPS antenna, running data can be recorded via a data logger, and with the GPS function, the system also enables automatic lap time recording on circuit course.

    Quick Shift System

    The YZF-R1M also comes equipped with a Quick Shift System that gives faster gear changing. This system instantly cancels drive torque when an upshift is detected - enabling full throttle clutchless upshifts for outstanding acceleration through the close ratio 6-speed transmission.

    6-Axis IMU

    The 6-axis Inertial Measurement Unit (IMU) consists of a gyro sensor (angular velocity sensor) that constantly measures machine pitch, roll and yaw, and a G-sensor (accelerometer) that measures acceleration in the forward-backward, up-down and right-left directions. This technology makes possible the class-leading array of rider aids includes lean sensitive Traction Control System (TCS), Slide Control System (SCS) as well as a front wheel lift control system (LIF) and Brake Control system (BC).

    Accelerator Position Sensor

    The Yamaha Chip Controlled Throttle (YCC-T) is activated by a high-tech twist grip assembly that gives a natural feeling for precise control. Featuring a spring, slider and gear that give a smooth and progressive feel, the lightweight ride-by-wire APSG (Accelerator Position Sensor Grip) twist grip gives instant throttle response.

    LED Headlights

    Lightweight, compact LED twin headlights for both the low and high beam, combined with the body styling, creates a front face symbolising the next-generation of R-Series design.

    Technical Specification

    • Engine Type Liquid-cooled, 4-stroke, DOHC, 4-valve, forward-inclined parallel 4-cylinder
    • Displacement (cc) 998.0
    • Bore x Stroke (mm) 79.0 x 50.9
    • Compression Ratio 13.0 : 1
    • Lubrication System Wet sump
    • Fuel Management Fuel Injection
    • Engine Management YCC-T, YCC-I, SCS, LIF, ABS, LCS
    • Ignition TCI
    • Starter System Electric
    • Fuel Tank Capacity (L) 17.0
    • Final Transmission Chain
    • Transmission Constant mesh 6-speed
    • Frame Type Aluminium Deltabox
    • Suspension Front Öhlins electronic adjustable telescopic forks, 120mm travel
    • Suspension Rear Öhlins electronic adjustable, 120mm travel
    • Brakes Front Hydraulic dual discs, 320mm - ABS
    • Brakes Rear Hydraulic single disc, 220mm - ABS
    • Tyres Front 120/70 ZR17MC (58W) Tubeless
    • Tyres Rear 200/55 ZR17M/C (78W) Tubeless
    • Length (mm) 2055
    • Width (mm) 690
    • Height (mm) 1165
    • Seat Height (mm) 860
    • Wheelbase (mm) 1405
    • Ground Clearance (mm) 130
    • Wet Weight (kg) 205
    • Colours
